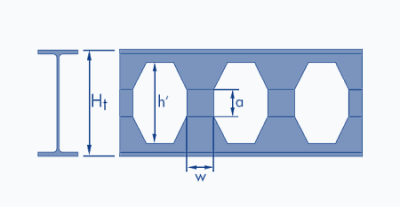

Sekizgen Açılımlı Petek Kirişler
Boyutlar:
Sekizgen açılımlı petek kirişlerin boyutları değişkendir, ACB yazılımı ile optimize edilebilirler.Kaynak, dizayna uygun olarak uygulanır.
Yüzey Durumu:
EN 10163-3: 2004 standartına göre sınıfı C, alt sınıfı 1.
Profil | Ölçüler | |||||
---|---|---|---|---|---|---|
(Ht = 1,05 x h, w = 0,5 x h)* | ||||||
a mm |
G kg/m |
Ht mm |
h' mm |
w mm |
AL mm2/m |
|
HE 260 AA | 122,0 | 56,2 | 488,0 | 366,0 | 122,0 | 1,515 |
HE 260 A | 125,0 | 71,0 | 500,0 | 375,0 | 125,0 | 1,526 |
HE 260 B | 130,0 | 96,4 | 520,0 | 390,0 | 130,0 | 1,542 |
HE 260 M | 145,0 | 179,0 | 580,0 | 435,0 | 145,0 | 1,623 |
HE 280 AA | 132,0 | 63,6 | 528,0 | 396,0 | 132,0 | 1,637 |
HE 280 A | 135,0 | 79,2 | 540,0 | 405,0 | 135,0 | 1,648 |
HE 280 B | 140,0 | 107,0 | 560,0 | 420,0 | 140,0 | 1,665 |
HE 280 M | 155,0 | 197,0 | 620,0 | 465,0 | 155,0 | 1,746 |
HE 300 AA | 141,5 | 72,6 | 566,0 | 425,0 | 142,0 | 1,752 |
HE 300 A | 145,0 | 91,5 | 580,0 | 435,0 | 145,0 | 1,765 |
HE 300 B | 150,0 | 121,3 | 600,0 | 450,0 | 150,0 | 1,782 |
HE 300 M | 170,0 | 247,0 | 680,0 | 510,0 | 170,0 | 1,889 |
HE 320 AA | 150,5 | 77,4 | 602,0 | 452,0 | 151,0 | 1,790 |
HE 320 A | 155,0 | 101,0 | 620,0 | 465,0 | 155,0 | 1,808 |
HE 320 B | 160,0 | 132,0 | 640,0 | 480,0 | 160,0 | 1,824 |
HE 320 M | 179,5 | 255,0 | 718,0 | 539,0 | 180,0 | 1,926 |
HE 340 AA | 160,0 | 82,5 | 640,0 | 480,0 | 160,0 | 1,830 |
HE 340 A | 165,0 | 109,0 | 660,0 | 495,0 | 165,0 | 1,850 |
HE 340 B | 170,0 | 139,0 | 680,0 | 510,0 | 170,0 | 1,867 |
HE 340 M | 188,5 | 258,0 | 754,0 | 566,0 | 189,0 | 1,965 |
HE 360 AA | 169,5 | 87,7 | 678,0 | 509,0 | 170,0 | 1,871 |
HE 360 A | 175,0 | 117,0 | 700,0 | 525,0 | 175,0 | 1,892 |
HE 360 B | 180,0 | 148,0 | 720,0 | 540,0 | 180,0 | 1,909 |
HE 360 M | 197,5 | 261,0 | 790,0 | 593,0 | 198,0 | 2,000 |
HE 400 AA | 189,0 | 97,1 | 756,0 | 567,0 | 189,0 | 1,954 |
HE 400 A | 195,0 | 131,0 | 780,0 | 585,0 | 195,0 | 1,977 |
HE 400 B | 200,0 | 162,0 | 800,0 | 600,0 | 200,0 | 1,994 |
HE 400 M | 216,0 | 268,0 | 864,0 | 648,0 | 216,0 | 2,076 |
HE 450 AA | 212,5 | 105,0 | 850,0 | 638,0 | 213,0 | 2,055 |
HE 450 A | 220,0 | 147,0 | 880,0 | 660,0 | 220,0 | 2,084 |
HE 450 B | 225,0 | 179,0 | 900,0 | 675,0 | 225,0 | 2,101 |
HE 450 M | 239,0 | 276,0 | 956,0 | 717,0 | 239,0 | 2,176 |
HE 500 AA | 236,0 | 113,0 | 944,0 | 708,0 | 236,0 | 2,156 |
HE 500 A | 245,0 | 163,0 | 980,0 | 735,0 | 245,0 | 2,192 |
HE 500 B | 250,0 | 196,0 | 1000,0 | 750,0 | 250,0 | 2,208 |
HE 500 M | 262,0 | 284,0 | 1048,0 | 786,0 | 262,0 | 2,271 |
HE 550 AA | 261,0 | 128,0 | 1044,0 | 783,0 | 261,0 | 2,262 |
HE 550 A | 270,0 | 175,0 | 1080,0 | 810,0 | 270,0 | 2,299 |
HE 550 B | 275,0 | 210,0 | 1100,0 | 825,0 | 275,0 | 2,316 |
HE 550 M | 286,0 | 294,0 | 1144,0 | 858,0 | 286,0 | 2,375 |
HE 600 AA | 285,5 | 138,0 | 1142,0 | 856,5 | 285,5 | 2,367 |
HE 600 A | 295,0 | 188,0 | 1180,0 | 885,0 | 295,0 | 2,406 |
HE 600 B | 300,0 | 224,0 | 1200,0 | 900,0 | 300,0 | 2,423 |
HE 600 M | 310,0 | 302,0 | 1240,0 | 930,0 | 310,0 | 2,475 |
HE 600 x 337 | 316,0 | 358,0 | 1264,0 | 948,0 | 316,0 | 2,512 |
HE 600 x 399 | 324,0 | 424,0 | 1296,0 | 972,0 | 324,0 | 2,558 |
HE 650 AA | 310,0 | 148,0 | 1240,0 | 930,0 | 310,0 | 2,472 |
HE 650 A | 320,0 | 201,0 | 1280,0 | 960,0 | 320,0 | 2,514 |
HE 650 B | 325,0 | 239,0 | 1300,0 | 975,0 | 325,0 | 2,530 |
HE 650 M | 334,0 | 311,0 | 1336,0 | 1002,0 | 334,0 | 2,579 |
HE 650 x 343 | 340,0 | 365,0 | 1360,0 | 1020,0 | 340,0 | 2,613 |
HE 650 x 407 | 348,0 | 434,0 | 1392,0 | 1044,0 | 348,0 | 2,659 |
HE 700 AA | 335,0 | 161,0 | 1340,0 | 1005,0 | 335,0 | 2,580 |
HE 700 A | 345,0 | 217,0 | 1380,0 | 1035,0 | 345,0 | 2,620 |
HE 700 B | 350,0 | 257,0 | 1400,0 | 1050,0 | 350,0 | 2,637 |
HE 700 M | 358,0 | 321,0 | 1432,0 | 1074,0 | 358,0 | 2,679 |
HE 700 x 352 | 364,0 | 376,0 | 1456,0 | 1092,0 | 364,0 | 2,713 |
HE 700 x 418 | 372,0 | 447,0 | 1488,0 | 1116,0 | 372,0 | 2,759 |
HE 800 AA | 385,0 | 186,0 | 1540,0 | 1155,0 | 385,0 | 2,788 |
HE 800 A | 395,0 | 240,0 | 1580,0 | 1185,0 | 395,0 | 2,830 |
HE 800 B | 400,0 | 280,0 | 1600,0 | 1200,0 | 400,0 | 2,846 |
HE 800 M | 407,0 | 339,0 | 1628,0 | 1221,0 | 407,0 | 2,882 |
HE 800 x 373 | 413,0 | 400,0 | 1652,0 | 1239,0 | 413,0 | 2,920 |
HE 800 x 444 | 421,0 | 477,0 | 1684,0 | 1263,0 | 421,0 | 2,964 |
HE 900 AA | 435,0 | 215,0 | 1740,0 | 1305,0 | 435,0 | 3,003 |
HE 900 A | 445,0 | 271,0 | 1780,0 | 1335,0 | 445,0 | 3,044 |
HE 900 B | 450,0 | 313,0 | 1800,0 | 1350,0 | 450,0 | 3,061 |
HE 900 M | 455,0 | 358,0 | 1820,0 | 1365,0 | 455,0 | 3,086 |
HE 900 x 391 | 461,0 | 421,0 | 1844,0 | 1383,0 | 461,0 | 3,124 |
HE 900 x 466 | 469,0 | 503,0 | 1876,0 | 1407,0 | 469,0 | 3,168 |
HE 1000 AA | 485,0 | 242,0 | 1940,0 | 1455,0 | 485,0 | 3,218 |
HE 1000 A | 495,0 | 293,0 | 1980,0 | 1485,0 | 495,0 | 3,260 |
HE 1000 B | 500,0 | 339,0 | 2000,0 | 1500,0 | 500,0 | 3,277 |
HE 1000 M | 504,0 | 377,0 | 2016,0 | 1512,0 | 504,0 | 3,298 |
HE 1000 x 393 | 508,0 | 425,0 | 2032,0 | 1524,0 | 508,0 | 3,313 |
HE 1000 x 409 | 510,0 | 442,0 | 2040,0 | 1530,0 | 510,0 | 3,332 |
HE 1000 x 488 | 518,0 | 529,0 | 2072,0 | 1554,0 | 518,0 | 3,377 |
* : Örnek geometri. h : baz profil kirişin yüksekliği. |
Profil | Ölçüler | |||||
---|---|---|---|---|---|---|
(Ht = 1,05 x h, w = 0,5 x h)* | ||||||
a mm |
G kg/m |
Ht mm |
h' mm |
w mm |
AL mm2/m |
|
HL 920 x 344 | 463,5 | 368,0 | 1854,0 | 1390,5 | 463,5 | 3,605 |
HL 920 x 368 | 465,5 | 393,0 | 1862,0 | 1396,5 | 465,5 | 3,615 |
HL 920 x 390 | 468,0 | 416,0 | 1872,0 | 1404,0 | 468,0 | 3,636 |
HL 920 x 420 | 471,5 | 448,0 | 1886,0 | 1414,5 | 471,5 | 3,657 |
HL 920 x 449 | 474,0 | 479,0 | 1896,0 | 1422,0 | 474,0 | 3,668 |
HL 920 x 491 | 478,5 | 523,0 | 1914,0 | 1435,5 | 478,5 | 3,680 |
HL 920 x 537 | 482,5 | 573,0 | 1930,0 | 1447,5 | 482,5 | 3,701 |
HL 920 x 588 | 488,0 | 628,0 | 1952,0 | 1464,0 | 488,0 | 3,733 |
HL 920 x 656 | 493,5 | 701,0 | 1974,0 | 1480,5 | 493,5 | 3,765 |
HL 920 x 725 | 499,5 | 775,0 | 1998,0 | 1498,5 | 499,5 | 3,797 |
HL 920 x 787 | 505,5 | 841,0 | 2022,0 | 1516,5 | 505,5 | 3,829 |
HL 920 x 970 | 521,5 | 1038,0 | 2086,0 | 1564,5 | 521,5 | 3,914 |
HL 1000 AA | 491,0 | 317,0 | 1964,0 | 1473,0 | 491,0 | 3,643 |
HL 1000 A | 495,0 | 342,0 | 1980,0 | 1485,0 | 495,0 | 3,660 |
HL 1000 B | 500,0 | 396,0 | 2000,0 | 1500,0 | 500,0 | 3,677 |
HL 1000 M | 504,0 | 440,0 | 2016,0 | 1512,0 | 504,0 | 3,698 |
HL 1000 x 443 | 506,0 | 474,0 | 2024,0 | 1518,0 | 506,0 | 3,699 |
HL 1000 x 483 | 510,0 | 517,0 | 2040,0 | 1530,0 | 510,0 | 3,720 |
HL 1000 x 539 | 515,0 | 577,0 | 2060,0 | 1545,0 | 515,0 | 3,752 |
HL 1000 x 554 | 516,0 | 594,0 | 2064,0 | 1548,0 | 516,0 | 3,762 |
HL 1000 x 591 | 520,0 | 633,0 | 2080,0 | 1560,0 | 520,0 | 3,773 |
HL 1000 x 642 | 524,0 | 689,0 | 2096,0 | 1572,0 | 524,0 | 3,795 |
HL 1000 x 748 | 534,0 | 802,0 | 2136,0 | 1602,0 | 534,0 | 3,848 |
HL 1000 x 883 | 546,0 | 948,0 | 2184,0 | 1638,0 | 546,0 | 3,922 |
HL 1100 A | 545,0 | 369,0 | 2180,0 | 1635,0 | 545,0 | 3,892 |
HL 1100 B | 550,0 | 419,0 | 2200,0 | 1650,0 | 550,0 | 3,909 |
HL 1100 M | 554,0 | 465,0 | 2216,0 | 1662,0 | 554,0 | 3,931 |
HL 1100 R | 559,0 | 537,0 | 2236,0 | 1677,0 | 559,0 | 3,956 |
Profil | Ölçüler | |||||
---|---|---|---|---|---|---|
(Ht = 1,05 x h, w = 0,5 x h)* | ||||||
a mm |
G kg/m |
Ht mm |
h' mm |
w mm |
AL mm2/m |
|
IPE A 200 | 98,5 | 19,6 | 394,0 | 295,5 | 98,5 | 0,797 |
IPE 200 | 100,0 | 23,9 | 400,0 | 300,0 | 100,0 | 0,801 |
IPE O 200 | 101,0 | 26,7 | 404,0 | 303,0 | 101,0 | 0,813 |
IPE A 220 | 108,5 | 23,6 | 434,0 | 325,5 | 108,5 | 0,879 |
IPE 220 | 110,0 | 27,9 | 440,0 | 330,0 | 110,0 | 0,885 |
IPE O 220 | 111,0 | 31,3 | 444,0 | 333,0 | 111,0 | 0,895 |
IPE A 240 | 118,5 | 27,8 | 474,0 | 355,5 | 118,5 | 0,958 |
IPE 240 | 120,0 | 32,6 | 480,0 | 360,0 | 120,0 | 0,962 |
IPE O 240 | 121,0 | 36,5 | 484,0 | 363,0 | 121,0 | 0,972 |
IPE A 270 | 133,5 | 32,6 | 534,0 | 400,5 | 133,5 | 1,082 |
IPE 270 | 135,0 | 38,4 | 540,0 | 405,0 | 135,0 | 1,086 |
IPE O 270 | 137,0 | 45,0 | 548,0 | 411,0 | 137,0 | 1,097 |
IPE A 300 | 148,5 | 38,9 | 594,0 | 445,5 | 148,5 | 1,206 |
IPE 300 | 150,0 | 45,0 | 600,0 | 450,0 | 150,0 | 1,210 |
IPE O 300 | 152,0 | 52,5 | 608,0 | 456,0 | 152,0 | 1,225 |
IPE A 330 | 163,5 | 45,8 | 654,0 | 490,5 | 163,5 | 1,305 |
IPE 330 | 165,0 | 52,3 | 660,0 | 495,0 | 165,0 | 1,309 |
IPE O 330 | 167,0 | 60,7 | 668,0 | 501,0 | 167,0 | 1,324 |
IPE A 360 | 178,8 | 53,3 | 715,0 | 536,4 | 178,8 | 1,411 |
IPE 360 | 180,0 | 60,9 | 720,0 | 540,0 | 180,0 | 1,413 |
IPE O 360 | 182,0 | 70,4 | 728,0 | 546,0 | 182,0 | 1,428 |
IPE A 400 | 198,5 | 61,0 | 794,0 | 595,5 | 198,5 | 1,530 |
IPE 400 | 200,0 | 70,8 | 800,0 | 600,0 | 200,0 | 1,534 |
IPE O 400 | 202,0 | 80,8 | 808,0 | 606,0 | 202,0 | 1,548 |
IPE A 450 | 223,5 | 71,6 | 894,0 | 670,5 | 223,5 | 1,678 |
IPE 450 | 225,0 | 83,1 | 900,0 | 675,0 | 225,0 | 1,680 |
IPE O 450 | 228,0 | 99,0 | 912,0 | 684,0 | 228,0 | 1,698 |
IPE A 500 | 248,5 | 84,9 | 994,0 | 745,5 | 248,5 | 1,824 |
IPE 500 | 250,0 | 97,4 | 1000,0 | 750,0 | 250,0 | 1,827 |
IPE O 500 | 253,0 | 115,0 | 1012,0 | 759,0 | 253,0 | 1,844 |
IPE A 550 | 273,5 | 98,5 | 1094,0 | 820,5 | 273,5 | 1,966 |
IPE 550 | 275,0 | 114,0 | 1100,0 | 825,0 | 275,0 | 1,969 |
IPE O 550 | 278,0 | 132,0 | 1112,0 | 834,0 | 278,0 | 1,986 |
IPE A 600 | 298,5 | 116,0 | 1194,0 | 895,5 | 298,5 | 2,113 |
IPE 600 | 300,0 | 131,0 | 1200,0 | 900,0 | 300,0 | 2,115 |
IPE O 600 | 305,0 | 166,0 | 1220,0 | 915,0 | 305,0 | 2,147 |
IPE 750 x 147 | 376,5 | 160,0 | 1506,0 | 1129,5 | 376,5 | 2,636 |
IPE 750 x 173 | 381,0 | 187,0 | 1524,0 | 1143,0 | 381,0 | 2,661 |
IPE 750 x 196 | 385,0 | 212,0 | 1540,0 | 1155,0 | 385,0 | 2,680 |
* : Örnek geometri. h : baz profil kirişin yüksekliği. |
