Altıgen Açılımlı Petek Kirişler
Boyutlar:
Yuvarlak açılımlı petek kirişlerin boyutları değişkendir, ACB yazılımı ile optimize edilebilirler.Kaynak, dizayna uygun olarak uygulanır.
Yüzey Durumu:
EN 10163-3: 2004 standartına göre sınıfı C, alt sınıfı 1.
Profil | Ağırlık | Boyutlar | |||
---|---|---|---|---|---|

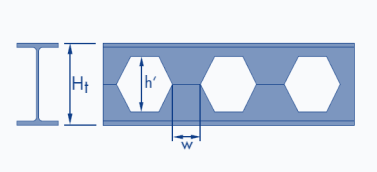

(Ht = 1,05 x h, w = 0,5 x h)* | |||||
G kg/m |
Ht mm |
h' mm |
w mm |
AL mm2/m |
|
HE 260 AA | 54,1 | 366,0 | 244,0 | 122,0 | 1,474 |
HE 260 A | 68,2 | 375,0 | 250,0 | 125,0 | 1,484 |
HE 260 B | 93,0 | 390,0 | 260,0 | 130,0 | 1,499 |
HE 260 M | 172,0 | 435,0 | 290,0 | 145,0 | 1,575 |
HE 280 AA | 61,2 | 396,0 | 264,0 | 132,0 | 1,593 |
HE 280 A | 76,4 | 405,0 | 270,0 | 135,0 | 1,603 |
HE 280 B | 103,0 | 420,0 | 280,0 | 140,0 | 1,618 |
HE 280 M | 189,0 | 465,0 | 310,0 | 155,0 | 1,694 |
HE 300 AA | 69,8 | 425,0 | 283,0 | 142,0 | 1,705 |
HE 300 A | 88,3 | 435,0 | 290,0 | 145,0 | 1,717 |
HE 300 B | 117,0 | 450,0 | 300,0 | 150,0 | 1,732 |
HE 300 M | 238,0 | 510,0 | 340,0 | 170,0 | 1,832 |
HE 320 AA | 74,2 | 452,0 | 301,0 | 151,0 | 1,740 |
HE 320 A | 97,6 | 465,0 | 310,0 | 155,0 | 1,756 |
HE 320 B | 127,0 | 480,0 | 320,0 | 160,0 | 1,771 |
HE 320 M | 245,0 | 539,0 | 359,0 | 180,0 | 1,866 |
HE 340 AA | 78,9 | 480,0 | 320,0 | 160,0 | 1,777 |
HE 340 A | 105,0 | 495,0 | 330,0 | 165,0 | 1,795 |
HE 340 B | 134,0 | 510,0 | 340,0 | 170,0 | 1,810 |
HE 340 M | 248,0 | 566,0 | 377,0 | 189,0 | 1,902 |
HE 360 AA | 83,7 | 509,0 | 339,0 | 170,0 | 1,814 |
HE 360 A | 112,0 | 525,0 | 350,0 | 175,0 | 1,834 |
HE 360 B | 142,0 | 540,0 | 360,0 | 180,0 | 1,849 |
HE 360 M | 250,0 | 593,0 | 395,0 | 198,0 | 1,934 |
HE 400 AA | 92,4 | 567,0 | 378,0 | 189,0 | 1,891 |
HE 400 A | 125,0 | 585,0 | 390,0 | 195,0 | 1,912 |
HE 400 B | 155,0 | 600,0 | 400,0 | 200,0 | 1,927 |
HE 400 M | 256,0 | 648,0 | 432,0 | 216,0 | 2,004 |
HE 450 AA | 99,7 | 638,0 | 425,0 | 213,0 | 1,984 |
HE 450 A | 140,0 | 660,0 | 440,0 | 220,0 | 2,011 |
HE 450 B | 171,0 | 675,0 | 450,0 | 225,0 | 2,026 |
HE 450 M | 263,0 | 717,0 | 478,0 | 239,0 | 2,096 |
HE 500 AA | 107,0 | 708,0 | 472,0 | 236,0 | 2,077 |
HE 500 A | 155,0 | 735,0 | 490,0 | 245,0 | 2,110 |
HE 500 B | 187,0 | 750,0 | 500,0 | 250,0 | 2,125 |
HE 500 M | 270,0 | 786,0 | 524,0 | 262,0 | 2,184 |
HE 550 AA | 120,0 | 783,0 | 522,0 | 261,0 | 2,175 |
HE 550 A | 166,0 | 810,0 | 540,0 | 270,0 | 2,209 |
HE 550 B | 199,0 | 825,0 | 550,0 | 275,0 | 2,224 |
HE 550 M | 278,0 | 858,0 | 572,0 | 286,0 | 2,280 |
HE 600 AA | 129,0 | 856,5 | 571,0 | 285,5 | 2,272 |
HE 600 A | 178,0 | 885,0 | 590,0 | 295,0 | 2,308 |
HE 600 B | 212,0 | 900,0 | 600,0 | 300,0 | 2,323 |
HE 600 M | 285,0 | 930,0 | 620,0 | 310,0 | 2,372 |
HE 600 x 337 | 337,0 | 948,0 | 632,0 | 316,0 | 2,407 |
HE 600 x 399 | 399,0 | 972,0 | 648,0 | 324,0 | 2,450 |
HE 650 AA | 138,0 | 930,0 | 620,0 | 310,0 | 2,369 |
HE 650 A | 190,0 | 960,0 | 640,0 | 320,0 | 2,407 |
HE 650 B | 225,0 | 975,0 | 650,0 | 325,0 | 2,422 |
HE 650 M | 293,0 | 1002,0 | 668,0 | 334,0 | 2,468 |
HE 650 x 343 | 343,0 | 1020,0 | 680,0 | 340,0 | 2,500 |
HE 650 x 407 | 407,0 | 1044,0 | 696,0 | 348,0 | 2,543 |
HE 700 AA | 150,0 | 1005,0 | 670,0 | 335,0 | 2,468 |
HE 700 A | 204,0 | 1035,0 | 690,0 | 345,0 | 2,505 |
HE 700 B | 241,0 | 1050,0 | 700,0 | 350,0 | 2,520 |
HE 700 M | 301,0 | 1074,0 | 716,0 | 358,0 | 2,560 |
HE 700 x 352 | 352,0 | 1092,0 | 728,0 | 364,0 | 2,592 |
HE 700 x 418 | 418,0 | 1116,0 | 744,0 | 372,0 | 2,635 |
HE 800 AA | 172,0 | 1155,0 | 770,0 | 385,0 | 2,660 |
HE 800 A | 224,0 | 1185,0 | 790,0 | 395,0 | 2,698 |
HE 800 B | 262,0 | 1200,0 | 800,0 | 400,0 | 2,713 |
HE 800 M | 317,0 | 1221,0 | 814,0 | 407,0 | 2,746 |
HE 800 x 373 | 373,0 | 1239,0 | 826,0 | 413,0 | 2,782 |
HE 800 x 444 | 444,0 | 1263,0 | 842,0 | 421,0 | 2,824 |
HE 900 AA | 198,0 | 1305,0 | 870,0 | 435,0 | 2,858 |
HE 900 A | 252,0 | 1335,0 | 890,0 | 445,0 | 2,896 |
HE 900 B | 291,0 | 1350,0 | 900,0 | 450,0 | 2,911 |
HE 900 M | 333,0 | 1365,0 | 910,0 | 455,0 | 2,934 |
HE 900 x 391 | 391,0 | 1383,0 | 922,0 | 461,0 | 2,970 |
HE 900 x 466 | 466,0 | 1407,0 | 938,0 | 469,0 | 3,012 |
HE 1000 AA | 222,0 | 1455,0 | 970,0 | 485,0 | 3,056 |
HE 1000 A | 272,0 | 1485,0 | 990,0 | 495,0 | 3,095 |
HE 1000 B | 314,0 | 1500,0 | 1000,0 | 500,0 | 3,110 |
HE 1000 M | 349,0 | 1512,0 | 1008,0 | 504,0 | 3,130 |
HE 1000 x 393 | 393,0 | 1524,0 | 1016,0 | 508,0 | 3,144 |
HE 1000 x 409 | 409,0 | 1530,0 | 1020,0 | 510,0 | 3,162 |
HE 1000 x 488 | 488,0 | 1554,0 | 1036,0 | 518,0 | 3,204 |
* : Örnek geometri. h : baz profil kirişin yüksekliği. |
Profil | Ağırlık | Boyutlar | |||
---|---|---|---|---|---|
(Ht = 1,05 x h, w = 0,5 x h)* | |||||
G kg/m |
Ht mm |
h' mm |
w mm |
AL mm2/m |
|
HL 920 x 344 | 345,0 | 1390,5 | 927,0 | 463,5 | 3,450 |
HL 920 x 368 | 368,0 | 1396,5 | 931,0 | 465,5 | 3,460 |
HL 920 x 390 | 390,0 | 1404,0 | 936,0 | 468,0 | 3,480 |
HL 920 x 420 | 420,0 | 1414,5 | 943,0 | 471,5 | 3,500 |
HL 920 x 449 | 449,0 | 1422,0 | 948,0 | 474,0 | 3,510 |
HL 920 x 491 | 491,0 | 1435,5 | 957,0 | 478,5 | 3,520 |
HL 920 x 537 | 537,0 | 1447,5 | 965,0 | 482,5 | 3,540 |
HL 920 x 588 | 588,0 | 1464,0 | 976,0 | 488,0 | 3,570 |
HL 920 x 656 | 656,0 | 1480,5 | 987,0 | 493,5 | 3,600 |
HL 920 x 725 | 725,0 | 1498,5 | 999,0 | 499,5 | 3,630 |
HL 920 x 787 | 787,0 | 1516,5 | 1011,0 | 505,5 | 3,660 |
HL 920 x 970 | 970,0 | 1564,5 | 1043,0 | 521,5 | 3,740 |
HL 1000 AA | 296,0 | 1473,0 | 982,0 | 491,0 | 3,479 |
HL 1000 A | 321,0 | 1485,0 | 990,0 | 495,0 | 3,495 |
HL 1000 B | 371,0 | 1500,0 | 1000,0 | 500,0 | 3,510 |
HL 1000 M | 412,0 | 1512,0 | 1008,0 | 504,0 | 3,530 |
HL 1000 x 443 | 443,0 | 1518,0 | 1012,0 | 506,0 | 3,530 |
HL 1000 x 483 | 483,0 | 1530,0 | 1020,0 | 510,0 | 3,550 |
HL 1000 x 539 | 539,0 | 1545,0 | 1030,0 | 515,0 | 3,580 |
HL 1000 x 554 | 554,0 | 1548,0 | 1032,0 | 516,0 | 3,590 |
HL 1000 x 591 | 591,0 | 1560,0 | 1040,0 | 520,0 | 3,600 |
HL 1000 x 642 | 642,0 | 1572,0 | 1048,0 | 524,0 | 3,620 |
HL 1000 x 748 | 748,0 | 1602,0 | 1068,0 | 534,0 | 3,670 |
HL 1000 x 883 | 883,0 | 1638,0 | 1092,0 | 546,0 | 3,740 |
HL 1100 A | 343,0 | 1635,0 | 1090,0 | 545,0 | 3,710 |
HL 1100 B | 390,0 | 1650,0 | 1100,0 | 550,0 | 3,726 |
HL 1100 M | 433,0 | 1662,0 | 1108,0 | 554,0 | 3,746 |
HL 1100 R | 499,0 | 1677,0 | 1118,0 | 559,0 | 3,770 |
* : Örnek geometri. h : baz profil kirişin yüksekliği. |
Profil | Ağırlık | Boyutlar | |||
---|---|---|---|---|---|
(Ht = 1,05 x h, w = 0,5 x h)* | |||||
G kg/m |
Ht mm |
h' mm |
w mm |
AL mm2/m |
|
IPE A 200 | 18,4 | 295,5 | 197,0 | 98,5 | 0,764 |
IPE 200 | 22,4 | 300,0 | 200,0 | 100,0 | 0,768 |
IPE O 200 | 25,1 | 303,0 | 202,0 | 101,0 | 0,779 |
IPE A 220 | 22,2 | 325,5 | 217,0 | 108,5 | 0,843 |
IPE 220 | 26,2 | 330,0 | 220,0 | 110,0 | 0,848 |
IPE O 220 | 29,4 | 333,0 | 222,0 | 111,0 | 0,858 |
IPE A 240 | 26,2 | 355,5 | 237,0 | 118,5 | 0,918 |
IPE 240 | 30,7 | 360,0 | 240,0 | 120,0 | 0,922 |
IPE O 240 | 34,3 | 363,0 | 242,0 | 121,0 | 0,932 |
IPE A 270 | 30,7 | 400,5 | 267,0 | 133,5 | 1,037 |
IPE 270 | 36,1 | 405,0 | 270,0 | 135,0 | 1,041 |
IPE O 270 | 42,3 | 411,0 | 274,0 | 137,0 | 1,051 |
IPE A 300 | 36,5 | 445,5 | 297,0 | 148,5 | 1,156 |
IPE 300 | 42,2 | 450,0 | 300,0 | 150,0 | 1,160 |
IPE O 300 | 49,3 | 456,0 | 304,0 | 152,0 | 1,174 |
IPE A 330 | 43,0 | 490,5 | 327,0 | 163,5 | 1,250 |
IPE 330 | 49,1 | 495,0 | 330,0 | 165,0 | 1,254 |
IPE O 330 | 57,0 | 501,0 | 334,0 | 167,0 | 1,268 |
IPE A 360 | 50,2 | 536,4 | 358,0 | 178,8 | 1,351 |
IPE 360 | 57,1 | 540,0 | 360,0 | 180,0 | 1,353 |
IPE O 360 | 66,0 | 546,0 | 364,0 | 182,0 | 1,367 |
IPE A 400 | 57,4 | 595,5 | 397,0 | 198,5 | 1,464 |
IPE 400 | 66,3 | 600,0 | 400,0 | 200,0 | 1,467 |
IPE O 400 | 75,7 | 606,0 | 404,0 | 202,0 | 1,481 |
IPE A 450 | 67,2 | 670,5 | 447,0 | 223,5 | 1,603 |
IPE 450 | 77,6 | 675,0 | 450,0 | 225,0 | 1,605 |
IPE O 450 | 92,4 | 684,0 | 456,0 | 228,0 | 1,622 |
IPE A 500 | 79,4 | 745,5 | 497,0 | 248,5 | 1,741 |
IPE 500 | 90,7 | 750,0 | 500,0 | 250,0 | 1,744 |
IPE O 500 | 107,0 | 759,0 | 506,0 | 253,0 | 1,760 |
IPE A 550 | 92,1 | 820,5 | 547,0 | 273,5 | 1,875 |
IPE 550 | 106,0 | 825,0 | 550,0 | 275,0 | 1,877 |
IPE O 550 | 123,0 | 834,0 | 556,0 | 278,0 | 1,893 |
IPE A 600 | 108,0 | 895,5 | 597,0 | 298,5 | 2,013 |
IPE 600 | 122,0 | 900,0 | 600,0 | 300,0 | 2,015 |
IPE O 600 | 154,0 | 915,0 | 610,0 | 305,0 | 2,045 |
IPE 750 x 147 | 147,0 | 1129,5 | 753,0 | 376,5 | 2,510 |
IPE 750 x 173 | 173,0 | 1143,0 | 762,0 | 381,0 | 2,534 |
IPE 750 x 196 | 196,0 | 1155,0 | 770,0 | 385,0 | 2,552 |
* : Örnek geometri. h : baz profil kirişin yüksekliği. |
